传感器 Fuel, Liquid Level, Sensors

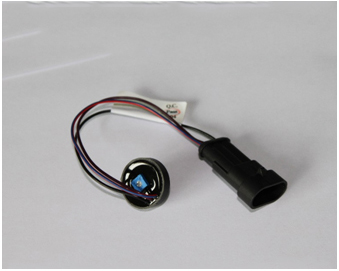

隔离燃料液位传感器 Isolated fuel level sensor
该霍尔型全隔离初始设计用于测量液化气罐体内LPG的液位,它同样适用于所有需要测量液体液位的场合,尤其是那些需要防爆的位置。应用中,一个特别定制的磁铁连同浮于结构可以完全封闭在待测液位的容器内,而该传感器则安装在罐体之外,它可以遥感的方式感测到罐体内部的准确液位,并输出从0V到5V 之间连续变化的电压值,其工作电压则为7V-18V,工作电流小于5mA。
This is a hall-type isolated liquid level sensor. It is originally designed to be used with LPG tank. In usage, a specified magnet can be installed side fuel tank with a float structure. Outside the metal tank installed is the sensor. It will accurately sense the movement of the magnet, which is proportional to the float position on the liquid level. Sensor can output a voltage ranging from 0 to 5V and work with a power supply ranging from 7 to 18 volts.
