数字光功率传感器 Digital Optical Power Sensor

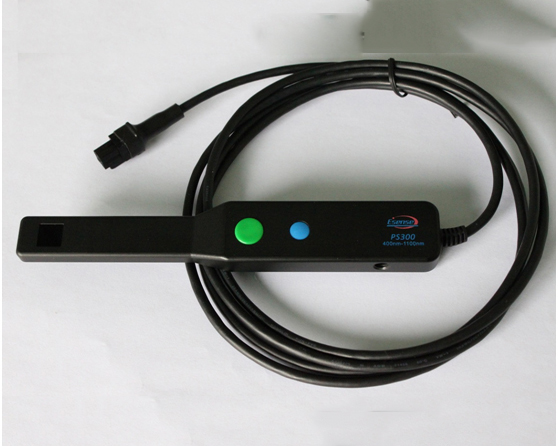

PS300特点 Features of the PS300
薄型设计,探测端厚度为6.8mm Slim design of only 6.8mm at the detector side
坚固的铝合金整体结构 Ruggedized aluminum head
准确的10 mm x 10 mm 孔径与传感器敏感范围,消除了计算功率密度时几何变换的必要性 Accurate10 mm x 10 mm aperture and sensing window, eliminating the necessity of geometric conversion in finding power density
与易辰电子生产的EPM功率计表头相兼容 Compatible with all Esense display units EPM-S700
与表头间的数字式接口有利于防止噪声 Digital interface to display units prevents potential noise interferences
精心设计的外形增加了手持的舒适性与易用性 Delicately designed shape emphasizes the comfortability and easy of usage
标准的三角架螺纹孔便于固定 Standard camera tripod hole of 1/4-20 facilitates the fixing of the sensor
双按钮设计使得功率采样变得十分容易。 buttons make sampling activities of light power easy
技术指标 PS300 Specification Sheet PS300
Sensor Type | PS300-xxxx-xxxx |
Detector Type | Silicon Photodiode |
Working Wavelength Range | 400 – 900nm, 400 - 1100 nm |
Optical Power Working Range | 10mW - 300mW, |
Max Average Power Density | 20 W/cm2 |
Max Pulse Energy | 20 μJ |
Linearity | ± 1% |
Resolution | 100 pW |
Measurement Uncertainty | ±5% 460 – 760 nm,±7% 400 – 459 nm, ±10% 761 – 1100 nm |
Typical Application | Low Power Lasers, narrow half-power bandwidth LED |
Laser Types | Diode, Diode Arrays, He-Ne, Dye, Ion Lasers (Ar+, Kr+) |
Coating /Diffuser | ND (OD2) |
Cooling | Convection |
Console Compatibility | EPM-S700 |
< 1 μs | |
Sensor Dimensions | 170 mm x 26.5 mm x 12 mm |
Active Detector Area | 10 mm x 10 mm |
Input Aperture | 10 mm x 10 mm |
Cable Length | 2 m |
Connector | Molex 3901-3045 4p male |
Weight | 0.12kg |
Post | UNC 1/4-20 |
